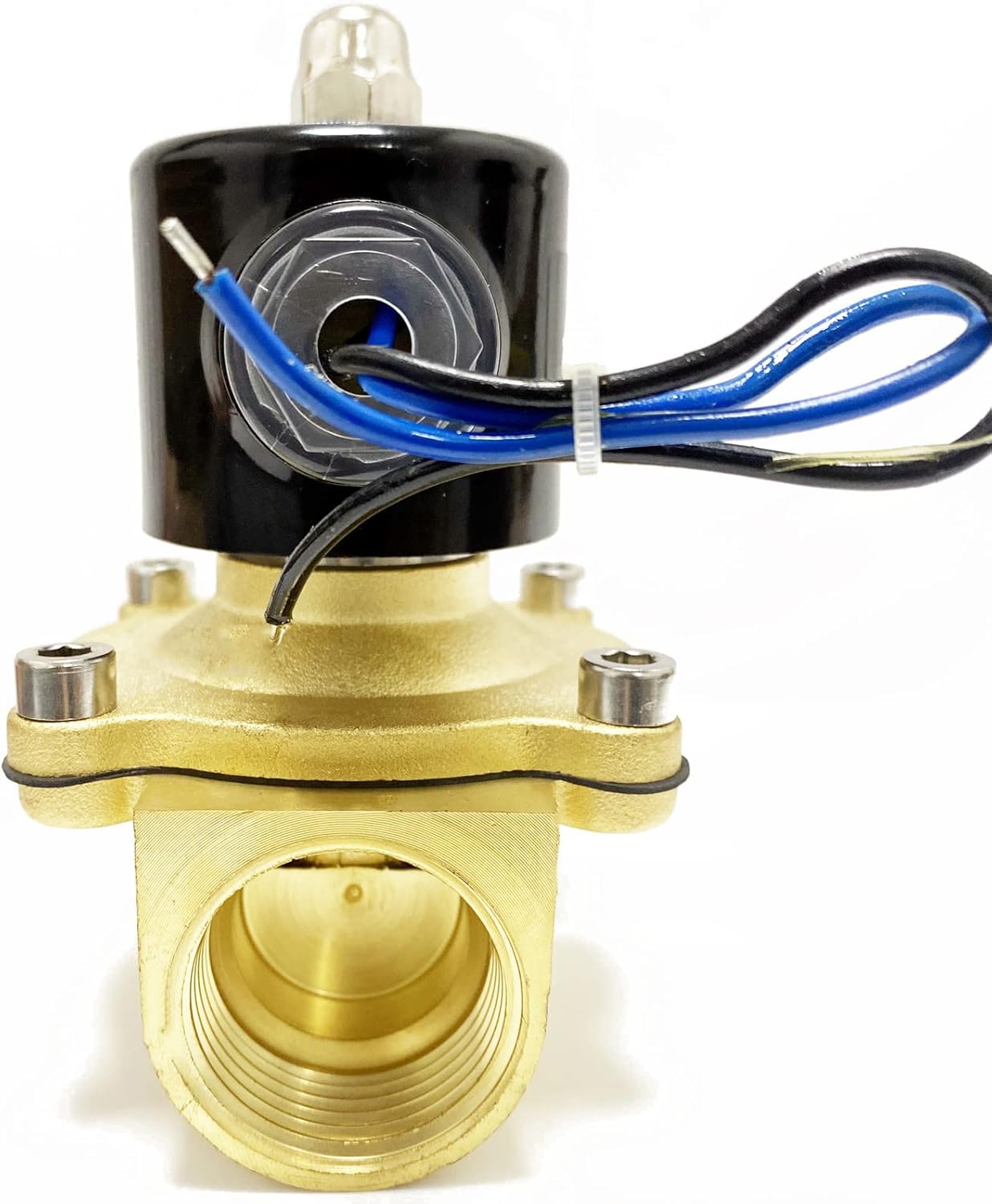

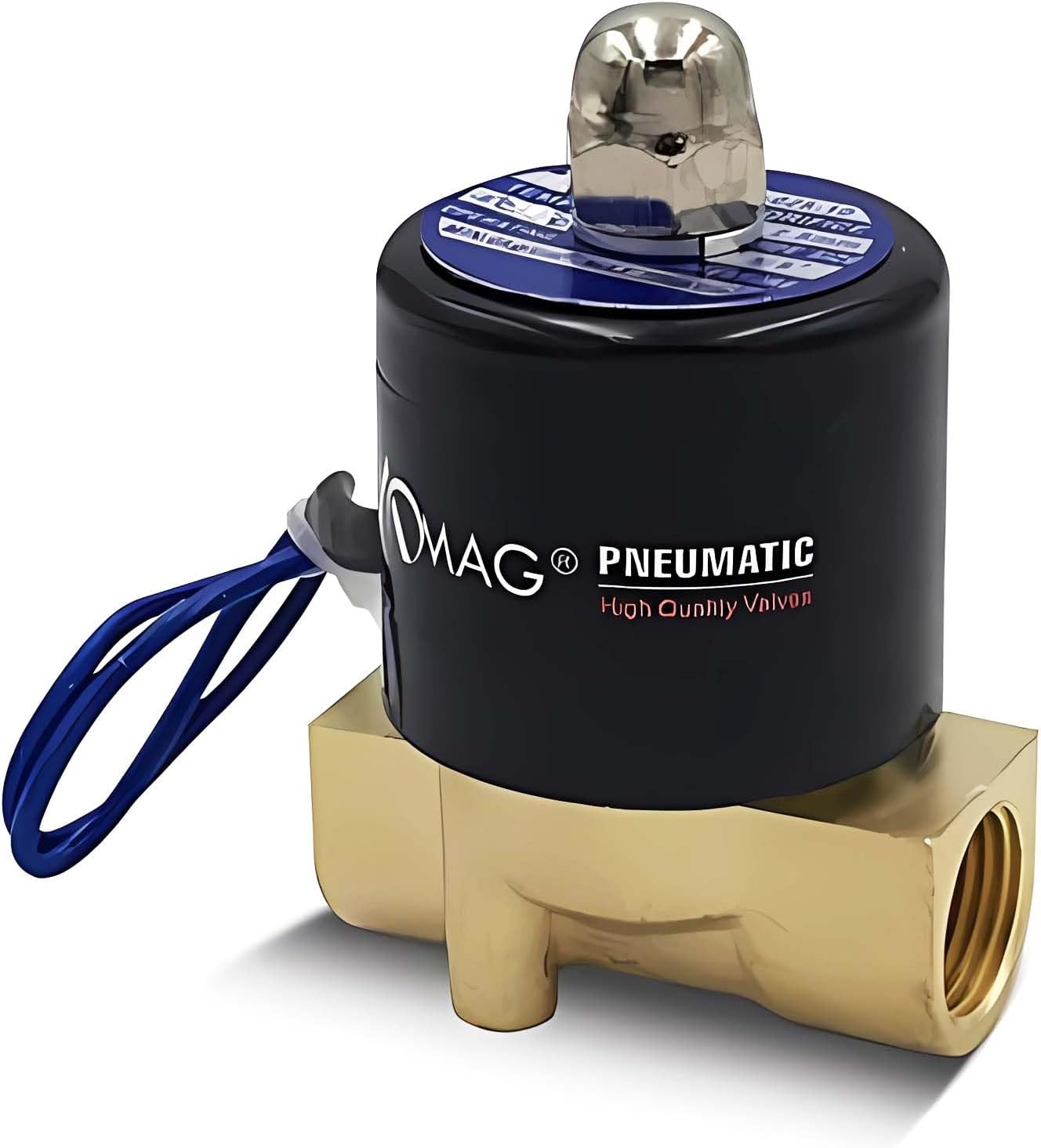

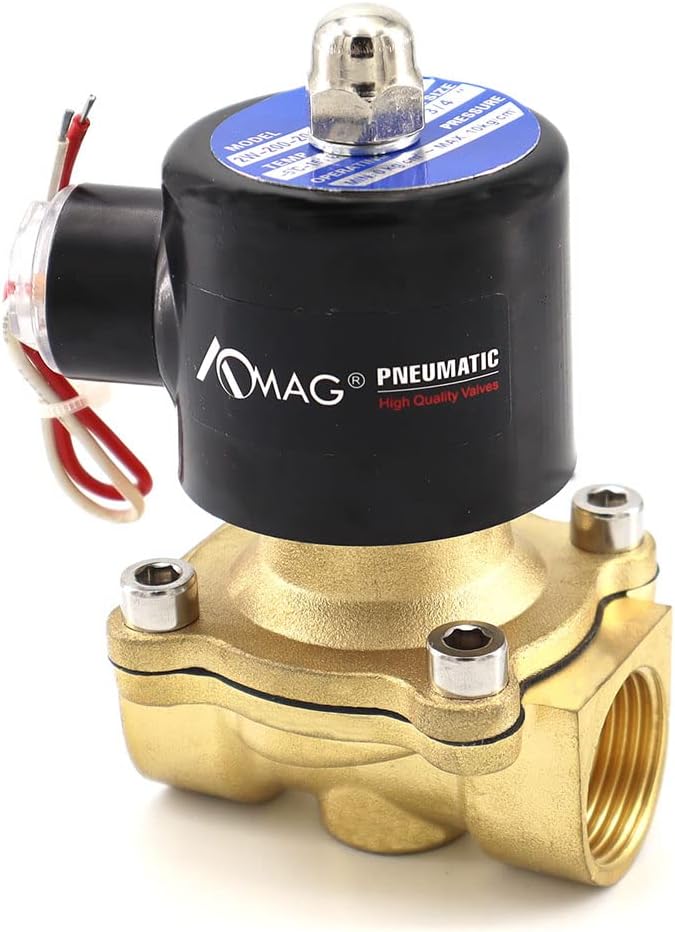

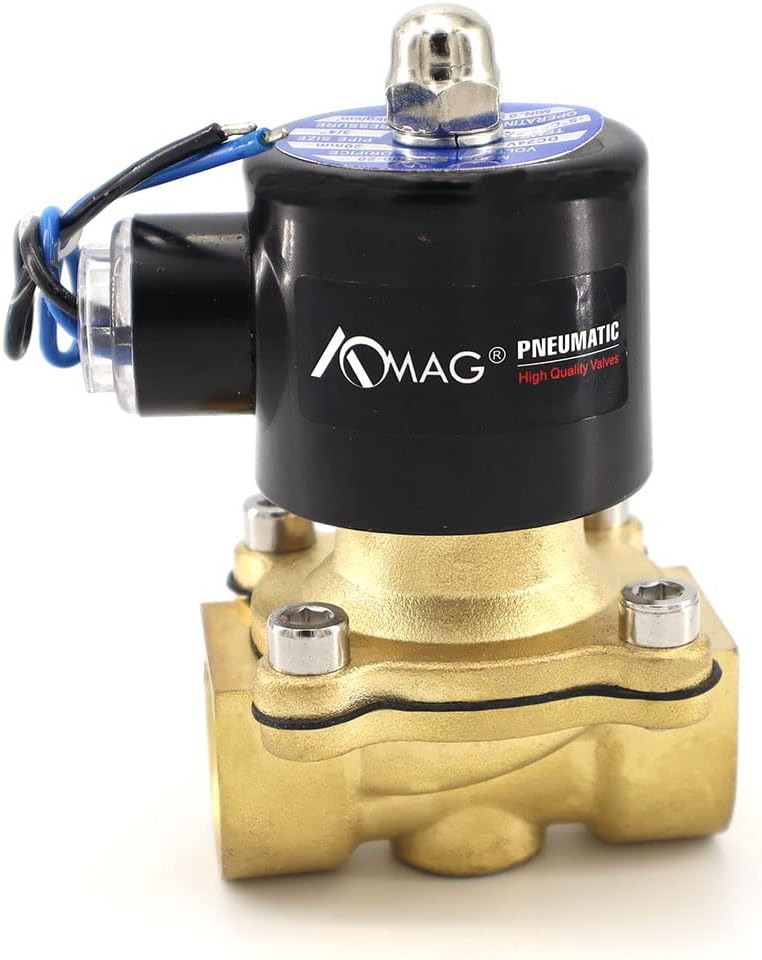

AOMAG 1" Brass Electric Solenoid Valve 24V DC Normally Closed Water, air, Diesel, VITON Gasket
5.0 (125 items)
Limited Time SaleUS$25.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221431499 | Release Date | 2026/05/03 | List Price | US$17.20 | Model Number | 221431499 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- VITON GASKET- Viton is a space age material that is very chemically inert. As such, it is commonly used with gasoline, kerosine and other organic solvents. Some companies sell solenoid valves with NBR gasket and advertise gasoline use. DO NOT USE NBR gasket for gasoline (it will corrode the gasket and can cause serious gasoline leak and accident or fire). If you intend on using a valve for gasoline, use only VITON gasket.
- ISO/OEM/ODM/CE and1 year warranty. DIRECT ACTING and Normally Closed Valve (N.C.) - The solenoid’s magnetic field with directly moves the plunger and close the orifice for any fluid or gas flow. Only opens while energized.
- -NEW- Re-engineered low power coil with up to 50% less heat generation. The valve starts as 19W and as it heat up to operating temperature power reduces to approx. 10-13W.
- 1" NPT (USA National Pipe Thread). Commonly used standard pipe thread in US..
- PLEASE NOTE: This valve is NOT a continuous duty valve and should NOT be in continuous use for more than 3 hours in a single cycle; to do so will shorten the life of the valve and may cause the core of the valve to burn out. If you need a continuous duty valve for your project please search for our AOMAG Motorized Ball Valves.
| Size | 1 Inch |
|---|---|
| Brand Name | AOMAG |
| Unit Count | 1 Count |
| Valve Type | solenoid valve |
| Thread Size | 1 Inch |
| Thread Type | National Pipe Tapered |
| Manufacturer | AOM838821X1 |
| Model Number | AOM838821X1 |
| Material Type | Viton,Brass |
| Exterior Finish | Brass |

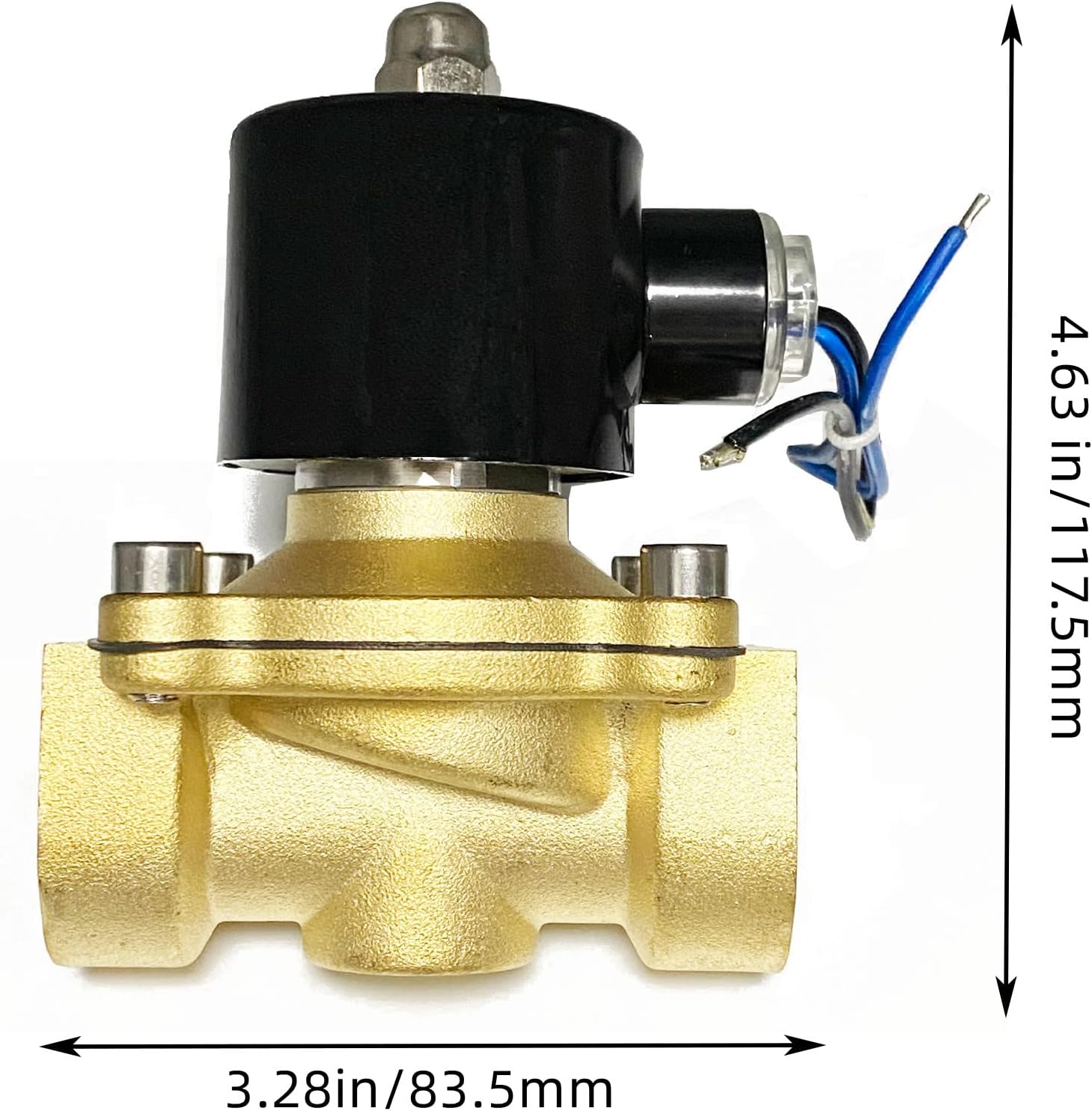

| Item Dimensions | 3.28 x 2.75 x 4.63 inches |
| Number of Ports | 1 |
| Maximum Pressure | 145 Pound per Square Inch |
| Specification Met | CE |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | National Pipe Tapered |
| Manufacturer Part Number | AOM838821X1 |
